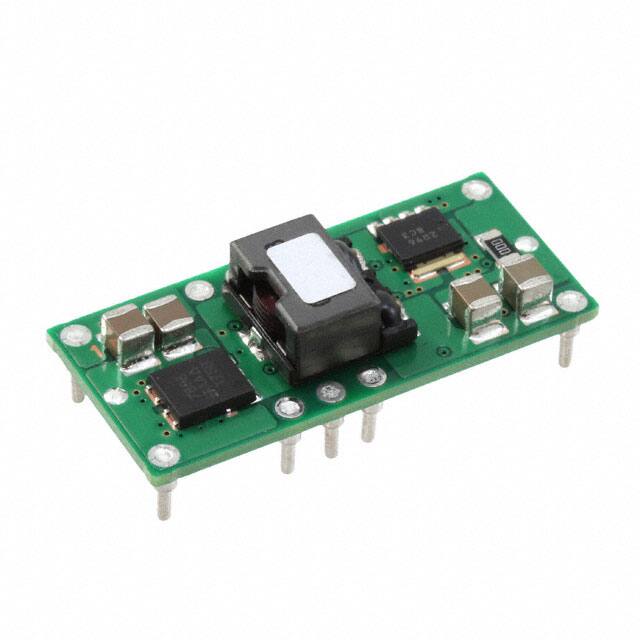

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Factory Lead Time

8 Weeks

Mounting Type

Through Hole

Package / Case

10-DIP Module

Surface Mount

NO

Number of Pins

10

Weight

3.7g

Voltage - Input (Nom)

12V

Power Dissipation (Max)

21.6W

Operating Temperature

-40°C~85°C

Packaging

Tray

Series

PTH12010

Size / Dimension

1.37Lx0.62W x 0.35 H 34.8mmx15.7mmx8.9mm

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

20

ECCN Code

EAR99

Type

Non-Isolated PoL Module

Terminal Finish

Tin (Sn)

Applications

ITE (Commercial)

Additional Feature

OUTPUT VARIES ACCORDING TO THE INPUT AND RESISTOR DIVIDER CONFIGURATION

HTS Code

8504.40.85.00

Terminal Position

DUAL

Terminal Form

PIN/PEG

Number of Functions

1

Depth

15.75mm

Base Part Number

TH12010

Number of Outputs

1

Approval Agency

UL, VDE

Efficiency

85%

Voltage - Input (Max)

13.2V

Voltage - Input (Min)

10.8V

Trim/Adjustable Output

YES

Current - Output (Max)

12A

Current - Output

12A

Quiescent Current

10mA

Max Output Voltage

1.8V

Voltage - Output

1.8V

Protections

OUTPUT OVER CURRENT

Control Mode

VOLTAGE-MODE

Current - Output 1

12A

Total Power Output-Max

27W

Min Output Voltage

550mV

Switching Frequency-Max

300kHz

Isolation

Non-Isolated

Height

9mm

Length

34.8mm

Thickness

8.75mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Flammability Rating

UL94 V-0

Lead Free

Lead Free
